TECH NOTE: Robomold® + Hostaform®

ROBOTIC ROTATIONAL MOLDING

OFFERS NEW CUSTOM PART SOLUTION OPPORTUNITIES WITH HOSTAFORM® POM RF POLYACETAL COPOLYMER

Published: June 2023

ROBOMOLD + HOSTAFORM POM RF = A PERFECT MATCH

As the first manufacturer in the United States to offer robotic rotational molding, Gemstar’s proprietary Robomold® technology is ideal for leveraging the full capabilities of Hostaform® POM RF, Celanese’s unique single-layer acetal solution designed specifically for rotational molding.

The partnership between Gemstar and Celanese is a synergy that has perfected the use of Hostaform® POM  RF material in Gemstar’s precision automated robotic rotational molding process. This combination of Robomold® Technology and  Hostaform® POM  RF  has provided Gemstar with the capability to manufacture the highest-quality fuel tanks available on the market.

ROBOMOLD® TECHNOLOGY

Robomold® robotic rotational molding is a leading-edge technology offered exclusively by Gemstar that is ideal for applications where precision and repeatability are essential. This robotic rotational molding technology allows for:

  • Tighter tolerances, which can be held with precision-distributed heat and material control for consistent part-to-part repeatability with optimized strength-to-weight ratios.
  • Unsurpassed design flexibility, which includes the ability to layer different compounds and coatings into finished parts where conventional rotational molding cannot satisfactorily meet evolving design requirements.
  • High process control of materials due to zoned heat controls and the natural-release features of both the material and process.

HOSTAFORM® POM RF

Celanese is known as the leading acetal copolymer supplier and has specifically formulated Hostaform® POM RF to deliver a drop-in solution for rotational molding applications. The material can be tailored to deliver ideal impact resistance and has a wide operating temperature range, from -40 degrees Fahrenheit to 212 degrees Fahrenheit.

This RF resin system delivers:

  • Low fuel permeation
  • High wear resistance
  • Dimension stability
  • Excellent toughness & rigidity
  • Low swelling during exposure
  • Temperature resistance

Hostaform® POM RF is a cutting-edge material for fuel applications such as fuel tanks and hydraulic tanks. End-use applications span a number of markets, such as lawncare products, agricultural equipment, military equipment, recreational vehicles, and industrial equipment.

HOSTAFORM® POM RF FOR FUEL TANKS

Figure 1: Comparison between a part made with Robomold robotic rotational molding (left) and the same product made with traditional molding (right).

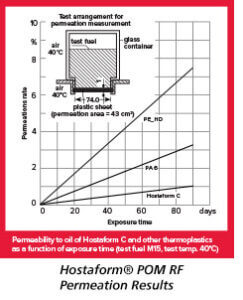

Hostaform® POM RF is an ideal solution for fuel tanks and hydraulic tanks. Hostaform® POM RF offers low fuel permeation inherent to the base resin. It can accommodate the following fuels: alcohol, hydrogen, unleaded race fuel, compressed natural gas, diesel, ethanol 85, gasoline, propane, and more.

Hostaform® POM RF and Robomold® Technology come together to maximize the design potential of fuel tank systems. Unlike current options on the market, Hostaform® POM RF does not require secondary steps such as fluorination or multilayer/barrier layer molding to improve fuel permeation. Hostaform® POM RF’s single-layer solution is formulated to enable CARB and EPA fuel tank applications.  (Image 1: After & Before of a fuel tank utilizing Hostaform® POM RF + Robomold® Technology)

BENEFITS OF ROBOMOLD® + HOSTAFORM® POM RF

Delivers new, unique properties to the rotomolding toolkit.

XLPE Multi-layer barrier Hostaform® RF
Tank system cost $$$ $$$$ $$
Processing cycle time 100% 300% 100%
Secondary Operations (fluorination) $$ - -
Operational Access ✔ Limited ✔
Certification EPA EPA/CARB EPA/CARB
Supply Chain Complexity Inventory, shipping, offsite fluorination Available to sell after moldeing Available to sell after molding



PROCESSING WITH ROBOMOLD® TECHNOLOGY

Hostaform® POM RF can be used with traditional molding techniques but performs best when utilized with Robomold® robotic rotational molding. The primary reason for this is that Robomold® Technology perfectly controls and disperses Hostaform® POM RF in the molding process. Because Robomold® is automated, Gemstar’s design engineers can use high-precision temperature control during the molding process that allows for the perfect forming of the Hostaform® POM RF material. This process is more precise and allows for optimized material usage, reducing processing time by up to 50% to produce a tank compared to other rotational molding methods. These factors result in more consistency and overall, higher quality product than traditional molding methods.

DESIGN FLEXIBILITY

The use of Hostaform® POM RF with Robomold® robotic molding technology offers unparalleled design flexibility. This includes:

  • Ability to create unique geometries (Image 2) and variable wall thicknesses (Images 3 & 4)
  • Obtain excellent definition of molded in threads (Images 5 & 6) resulting in significant scrap reduction
  • Generate higher stiffness and heat deflection temperatures than polyethylene’s and some nylons leading to design flexibility in pressurized vessels
  • Eliminates the need to hydrate molded parts and scrapping wet resin due to exposure to moisture
  • Creates product in black or natural color, as well as a high capacity for accepting custom colors
  • Hostaform® POM RF offers a sustainable ECO-B option containing up to 97% bio-content via the ISCC+ certified mass-balance approach


Images 3 & 4: Direct heat flow allows for varying wall thicknesses, even within the same wall.

Image 5 & 6: Heat flow could be focused on the appropriate area for improved material dispersion to create improved threading.



EPA AND OTHER REQUIREMENTS

Hostaform® POM RF’s low permeation and toughened POM delivers and unprecedented balance of impact and durability performance required for manufacturers to meet EPA regulations including U.S. Environmental Protection Agency (EPA) and California Air Resources Board (CARB) regulations for SORE and other fuel systems. Additionally, Hostaform® POM RF products manufactured by Robomold® Technology pass UV testing, aging, application-specific drop tests, and ABYC HY24 flammability and shock testing.

Hostaform® POM RF is a trademark of Celanese or its affiliates, used under license by Hoechst GmbH, used by Celanese Corporation under license.
