Case Sizes

We have hundreds of sizes and countless customization options to meet your project specifications. We partner with you to identify all your case needs and design the solution for your application.

Talk to an expert

INTERIOR DIMENSIONS

Length (in)

Width (in)

Depth (in)

EXTERIOR DIMENSIONS

Length (in)

Width (in)

Depth (in)

Case Style
Lid Type
Handles Material
Style Model Inside Dimension Outside Dimension Lid Depth Bottom Depth Weight

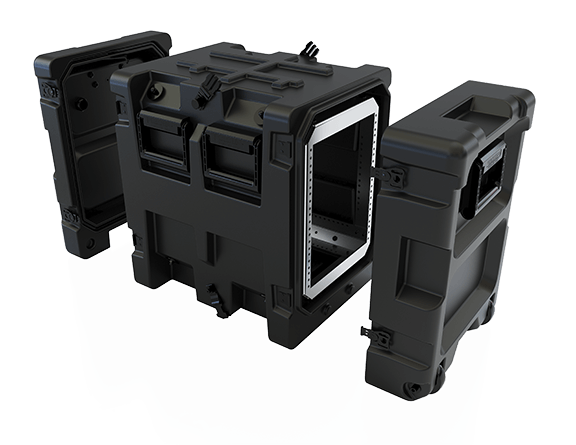

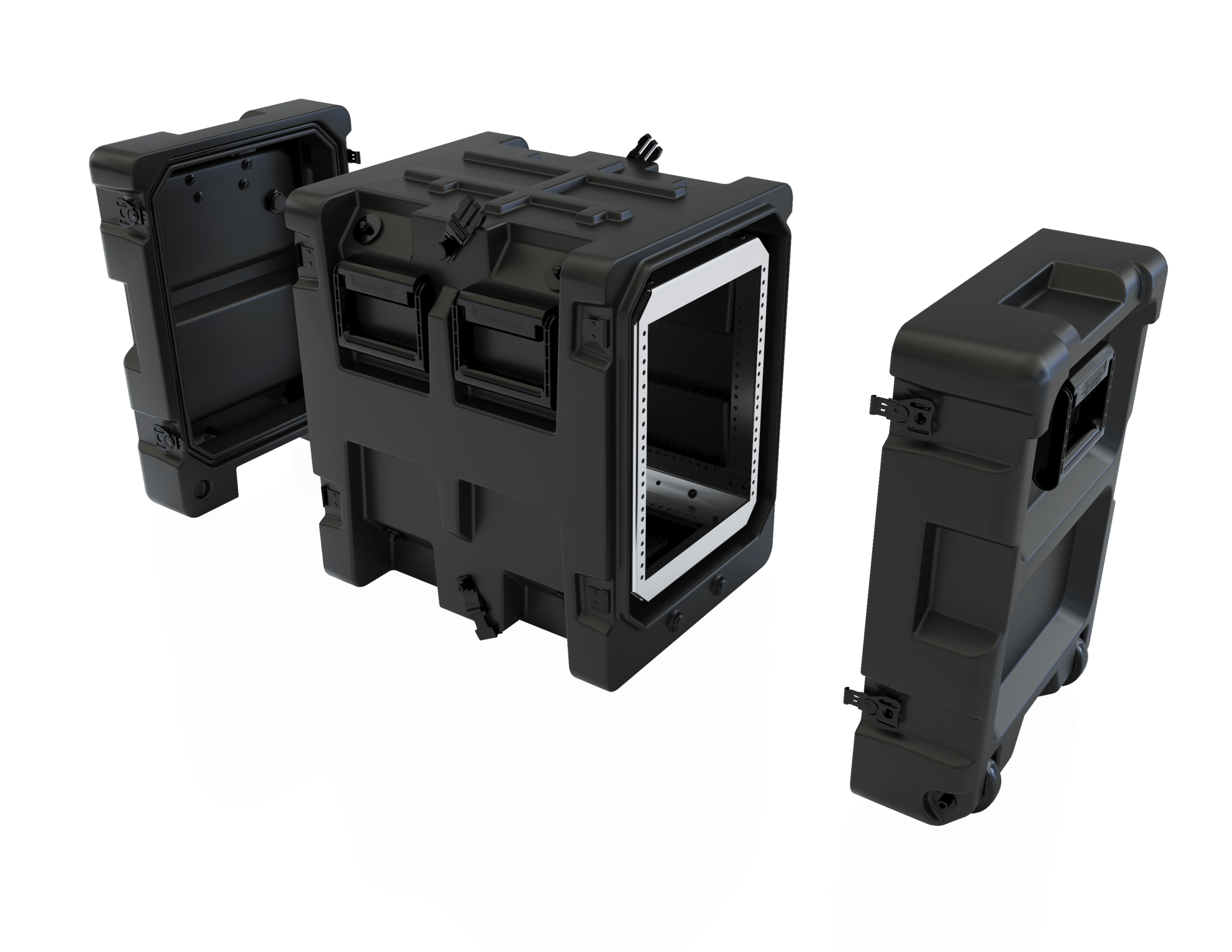

RoboRack™ SR1612-7U18 23.5" x 12.1" x 16.0"
597 x 307 x 406mm
27.0" x 15.4" x 20.7"
686 x 391 x 526mm
1.75"
44mm
3.75"
95mm
37.0lbs
16.8kg

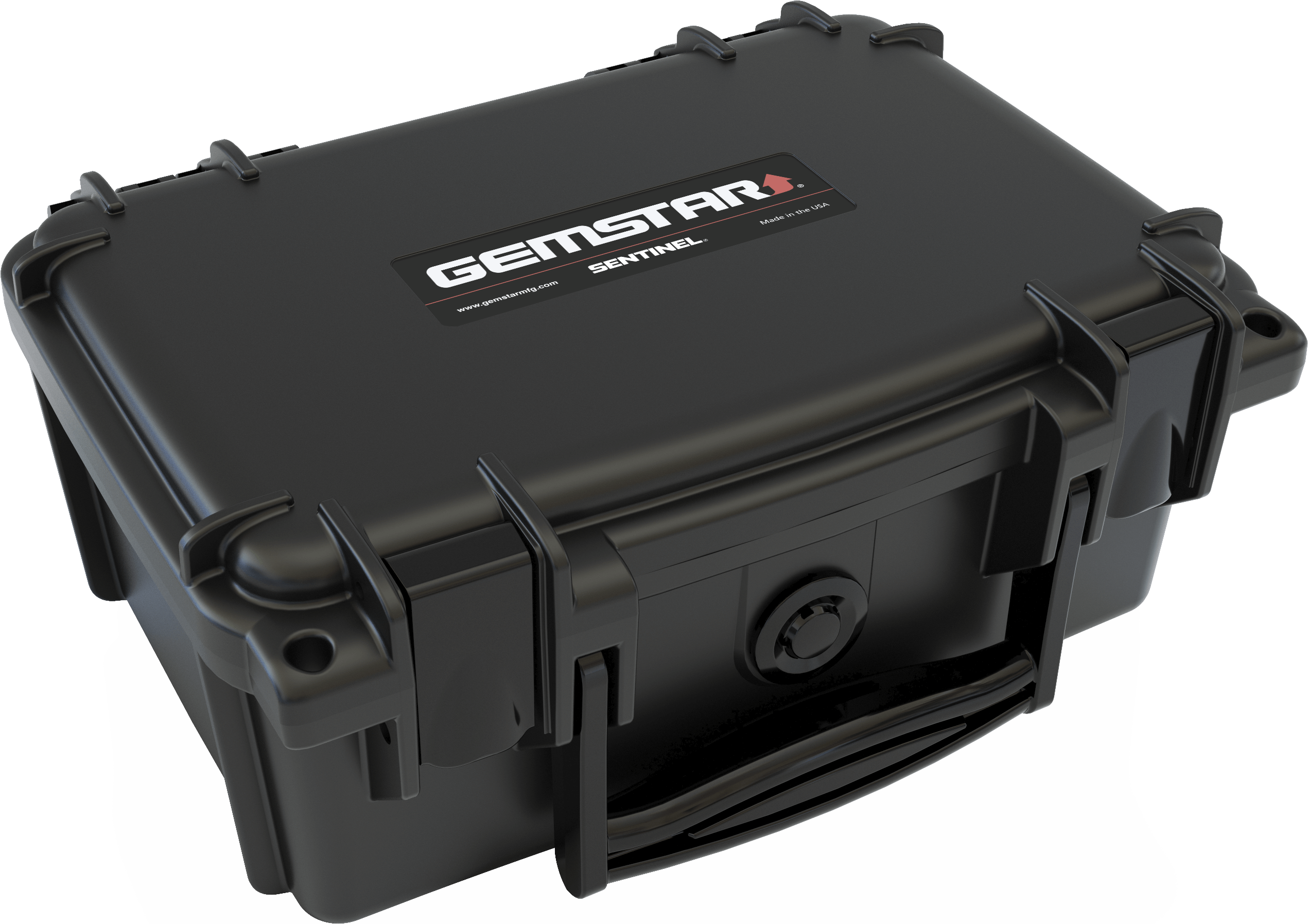

Sentinel® Sentinel 507-3 7.7" x 5.0" x 3.3"
196 x 127 x 84mm
8.7" x 6.8" x 3.8"
221 x 173 x 97mm
0.5"
13mm
2.8"
71mm
1.2lbs
0.5kg
Spec Sheet

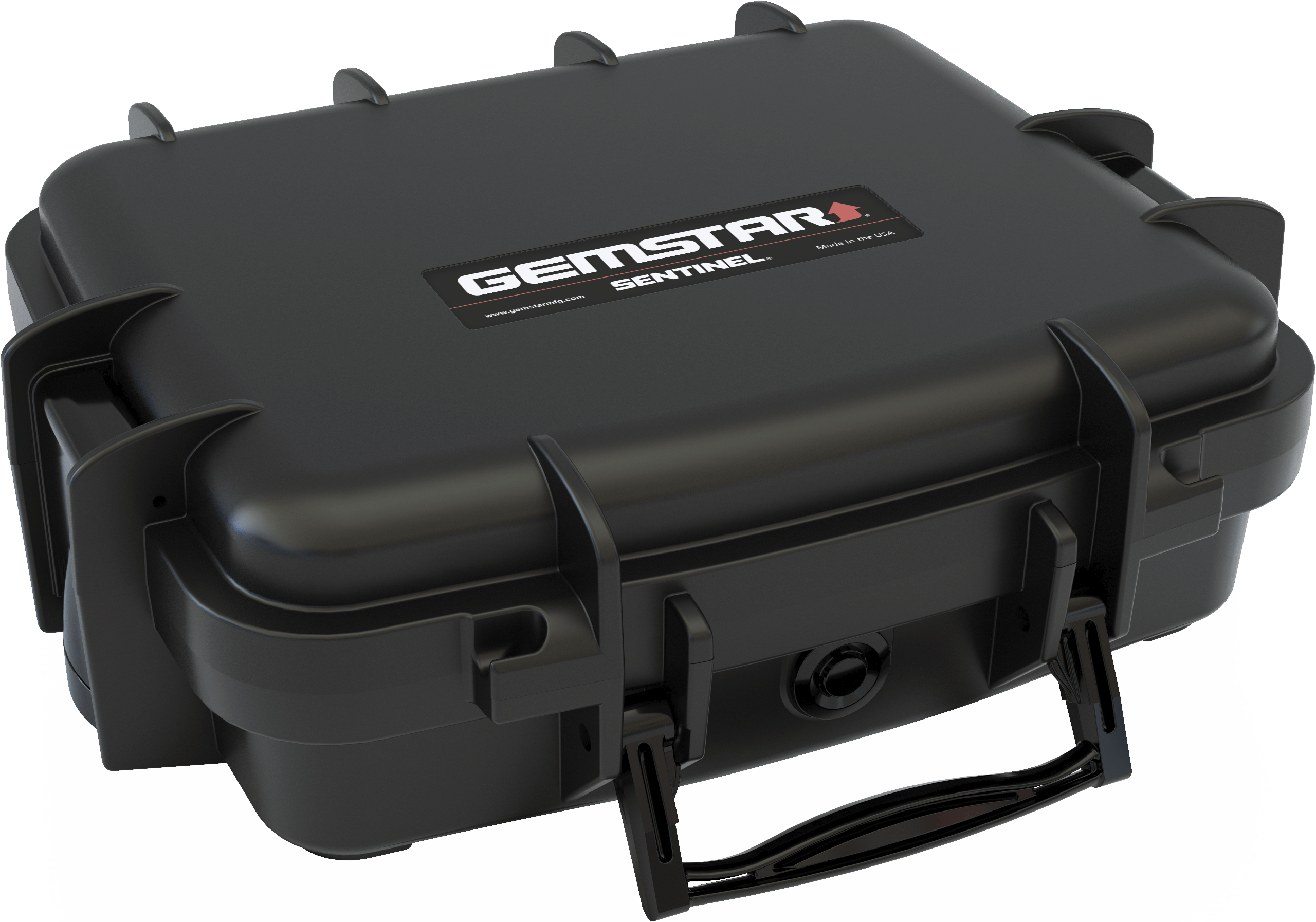

Sentinel® Sentinel 810-3 10.1" x 8.2" x 3.3"
257 x 208 x 84mm
12.4" x 10.3" x 3.9"
315 x 262 x 99mm
1.2"
30mm
2.1"
53mm
2.5lbs
1.1kg
Spec Sheet

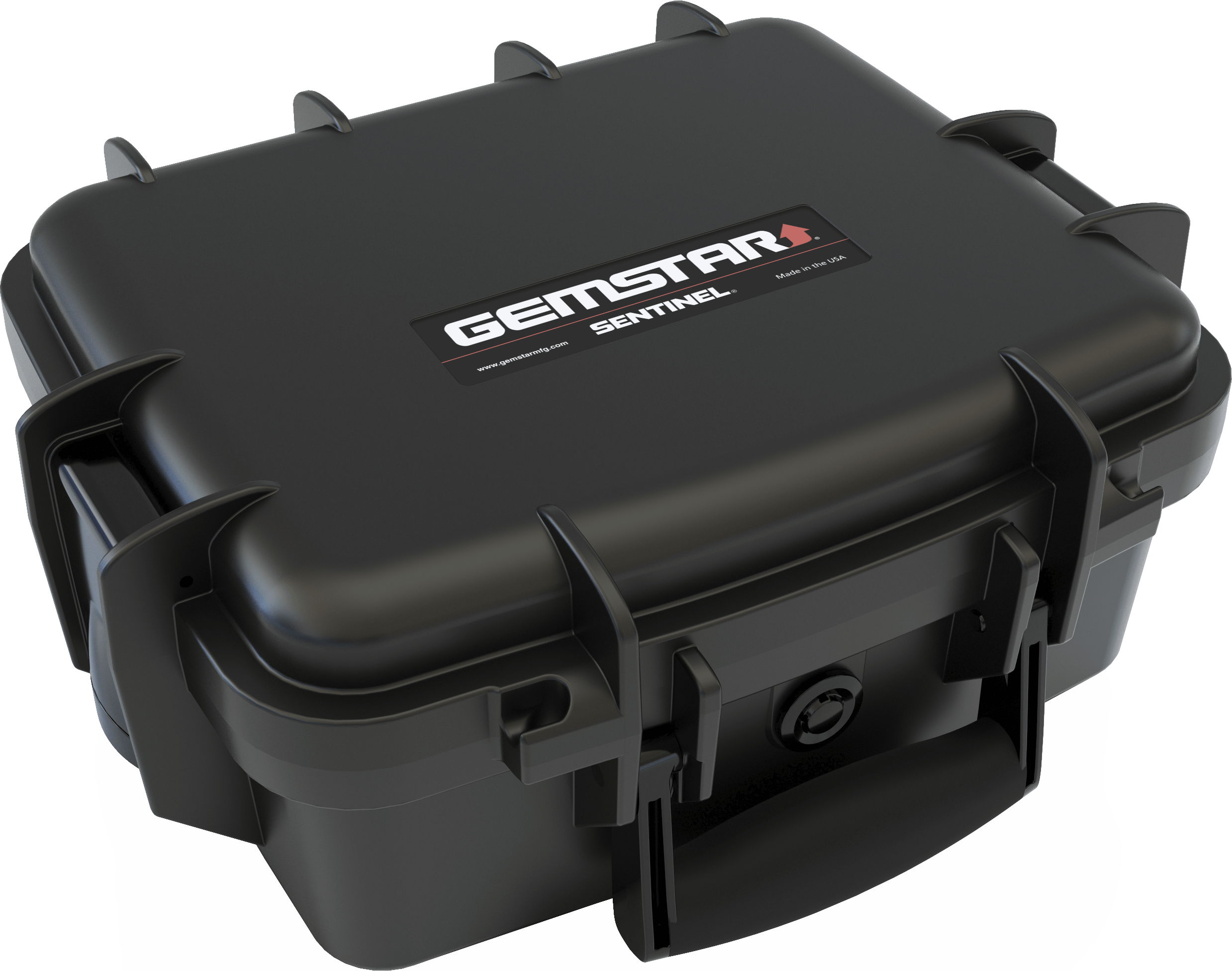

Sentinel® Sentinel 810-4 10.1" x 8.2" x 4.7"
257 x 208 x 119mm
12.5" x 10.5" x 5.3"
318 x 267 x 135mm
1.2"
30mm
3.5"
89mm
3.2lbs
1.5kg
Spec Sheet

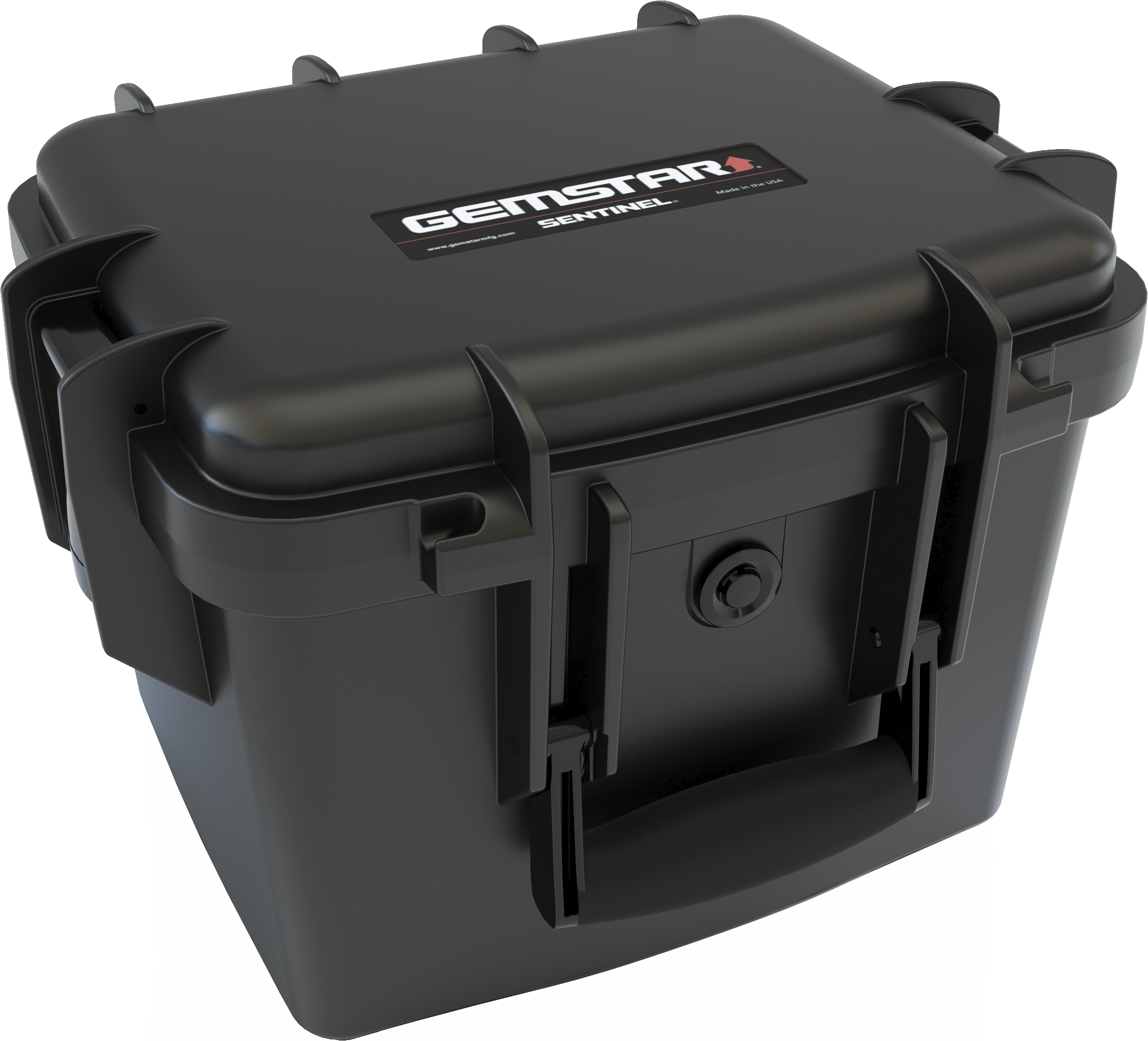

Sentinel® Sentinel 810-8 10.2" x 8.3" x 8.3"
259 x 211 x 211mm
12.6" x 10.4" x 8.8"
320 x 264 x 224mm
1.3"
33mm
7.0"
178mm
4.1lbs
1.9kg
Spec Sheet

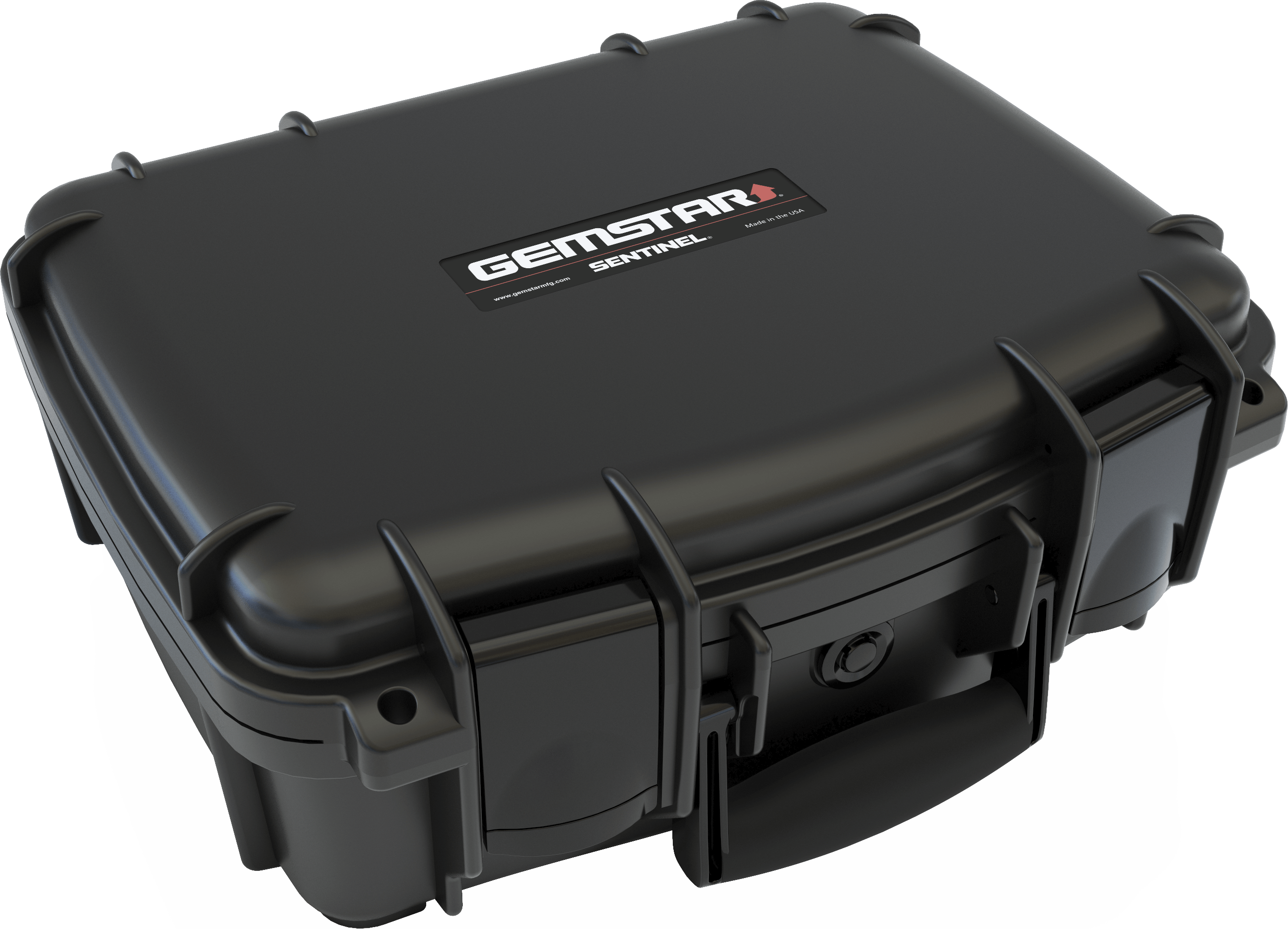

Sentinel® Sentinel 912-4 12.7" x 9.5" x 4.8"
323 x 241 x 122mm
14.0" x 12.1" x 5.3"
356 x 307 x 135mm
1.3"
33mm
3.5"
89mm
3.8lbs
1.7kg
Spec Sheet

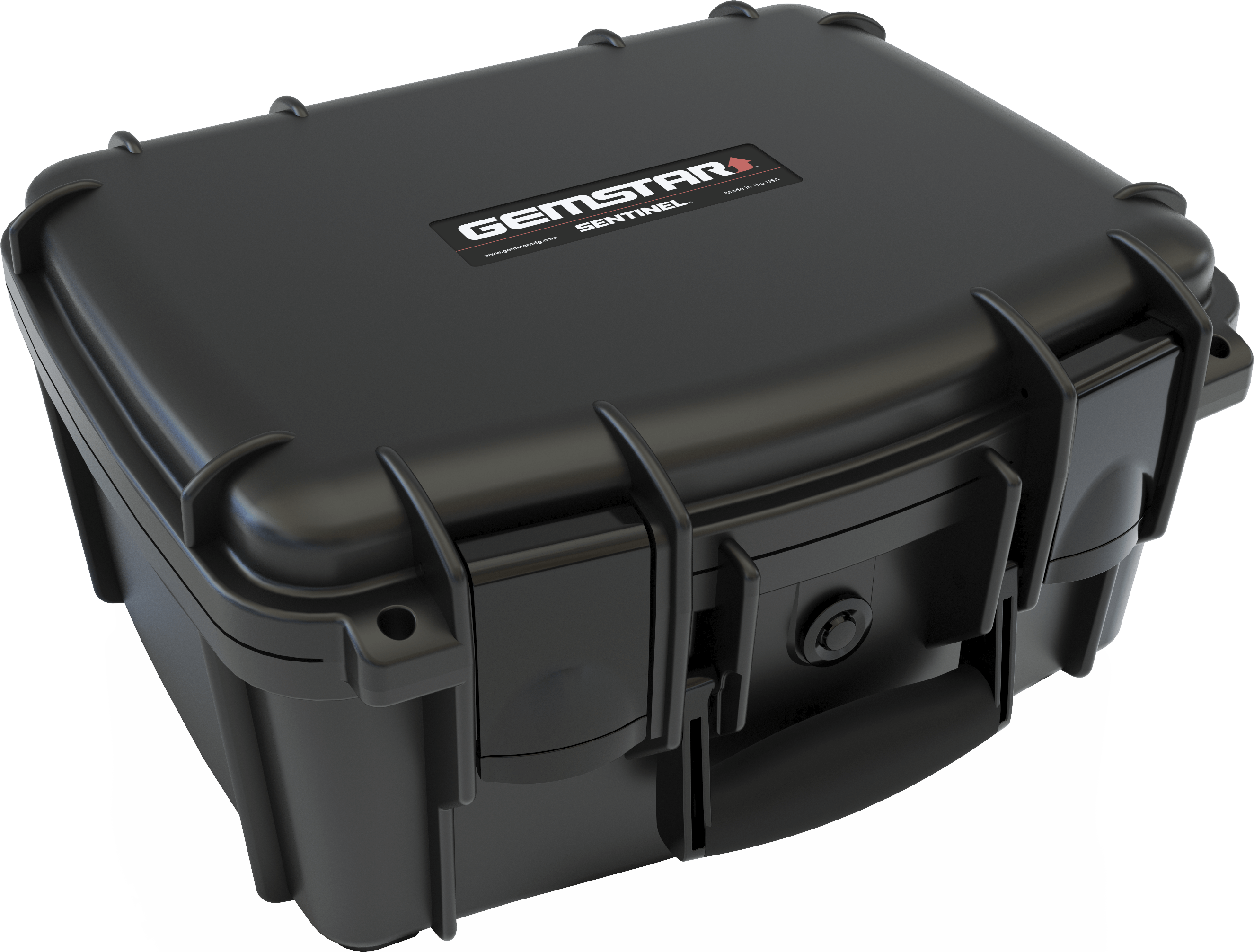

Sentinel® Sentinel 912-6 12.6" x 9.4" x 6.4"
320 x 239 x 163mm
14.0" x 12.0" x 6.9"
356 x 305 x 175mm
1.3"
33mm
5.1"
130mm
4.3lbs
2.0kg
Spec Sheet

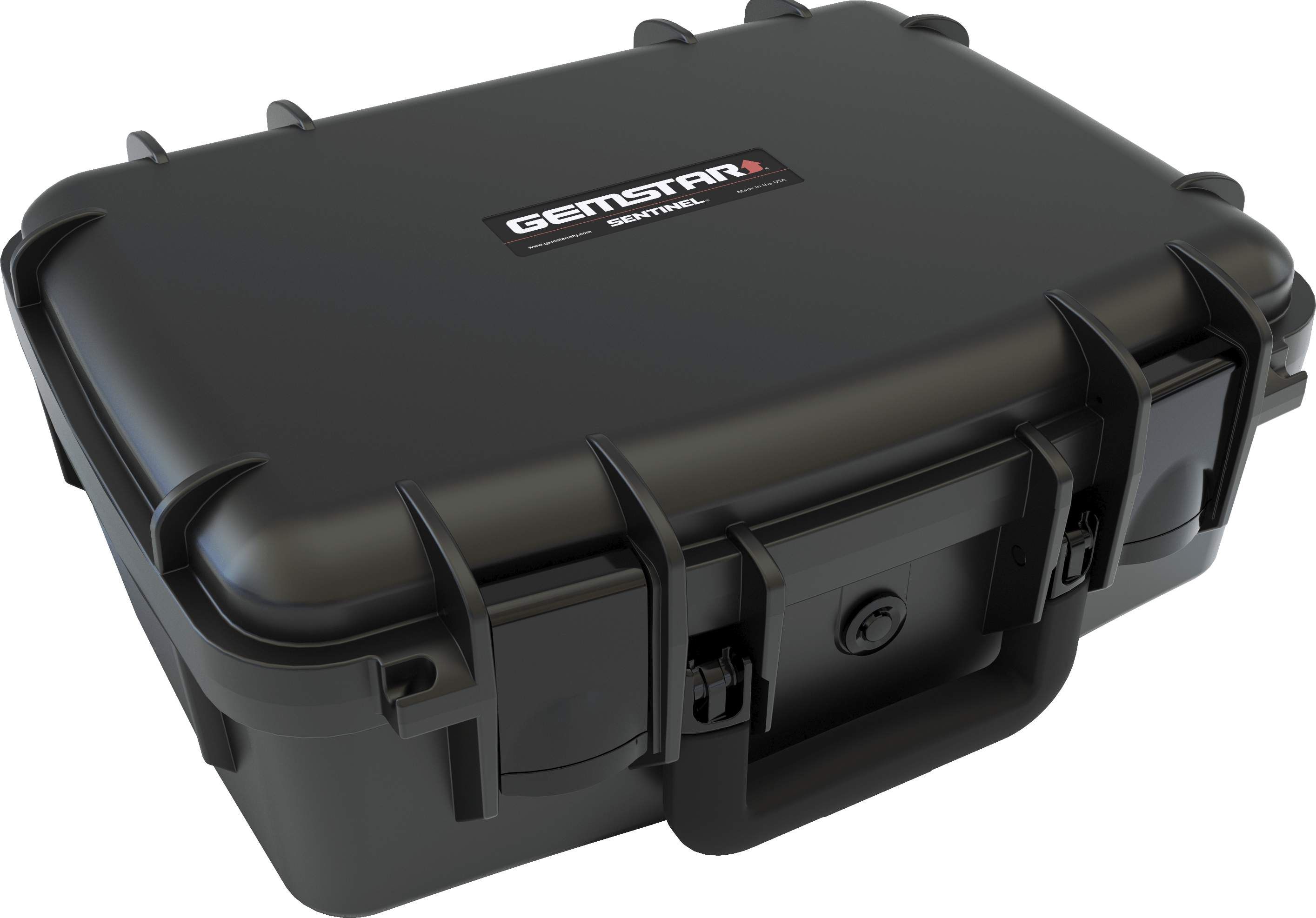

Sentinel® Sentinel 1116-6 15.9" x 11.2" x 6.0"
404 x 284 x 152mm
17.2" x 13.7" x 6.5"
437 x 348 x 165mm
1.5"
38mm
4.5"
114mm
5.8lbs
2.6kg
Spec Sheet

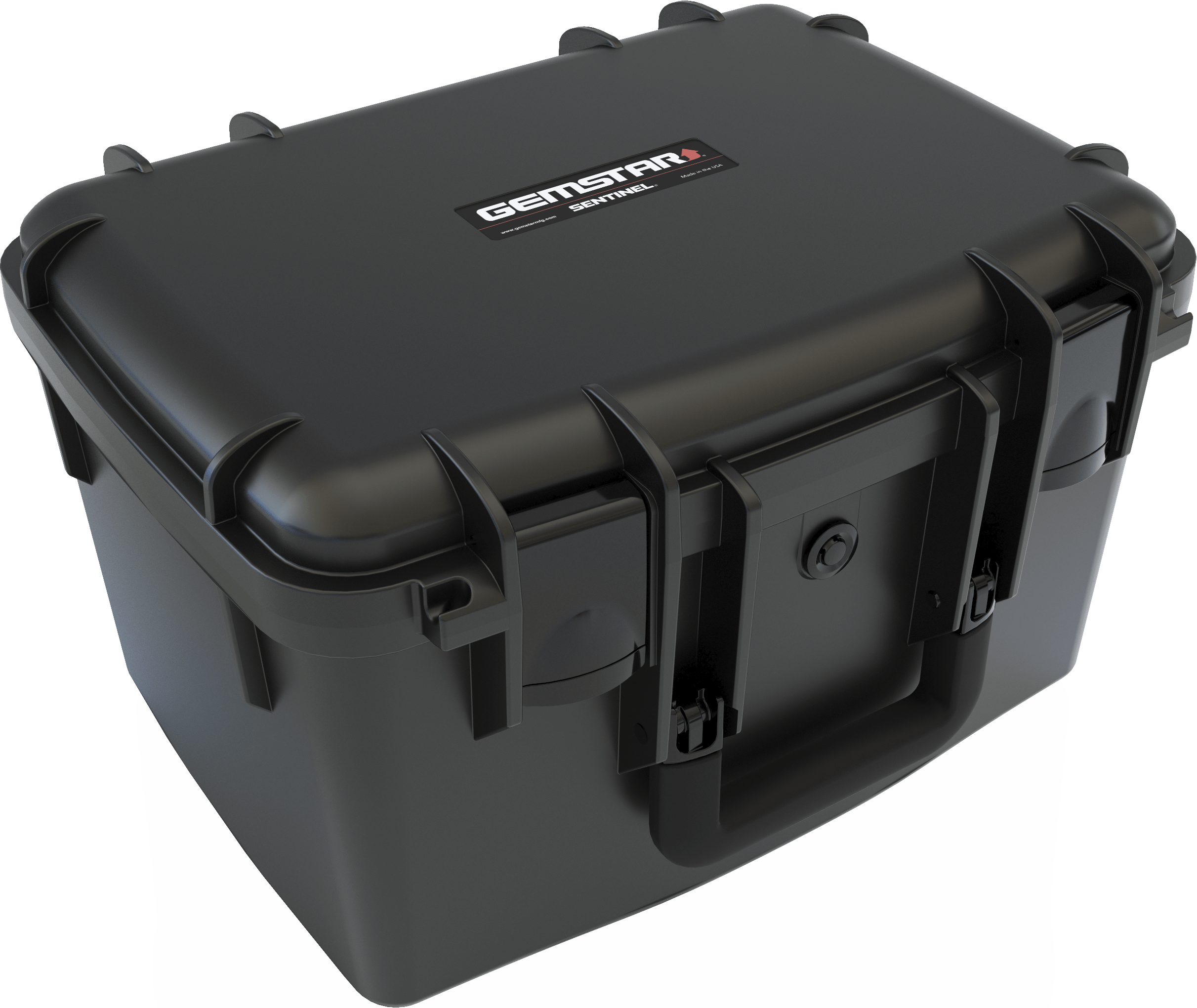

Sentinel® Sentinel 1116-10 15.9" x 11.2" x 10.0"
404 x 284 x 254mm
17.2" x 13.7" x 10.5"
437 x 348 x 267mm
1.5"
38mm
8.5"
216mm
7.6lbs
3.4kg
Spec Sheet

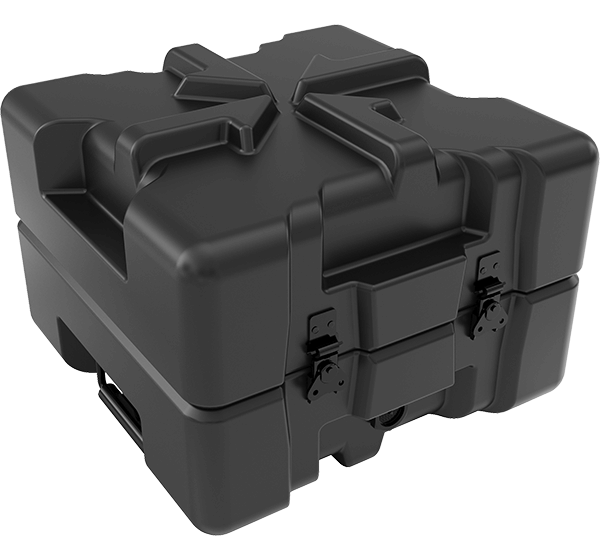

Stronghold® SH1212-0504 12.0" x 12.0" x 10.0"
304 x 303 x 252mm
15.5" x 15.5" x 11.9"
393 x 393 x 302mm
4.8"
121mm
5.2"
131mm
11.2lbs
5.1kg
Spec Sheet

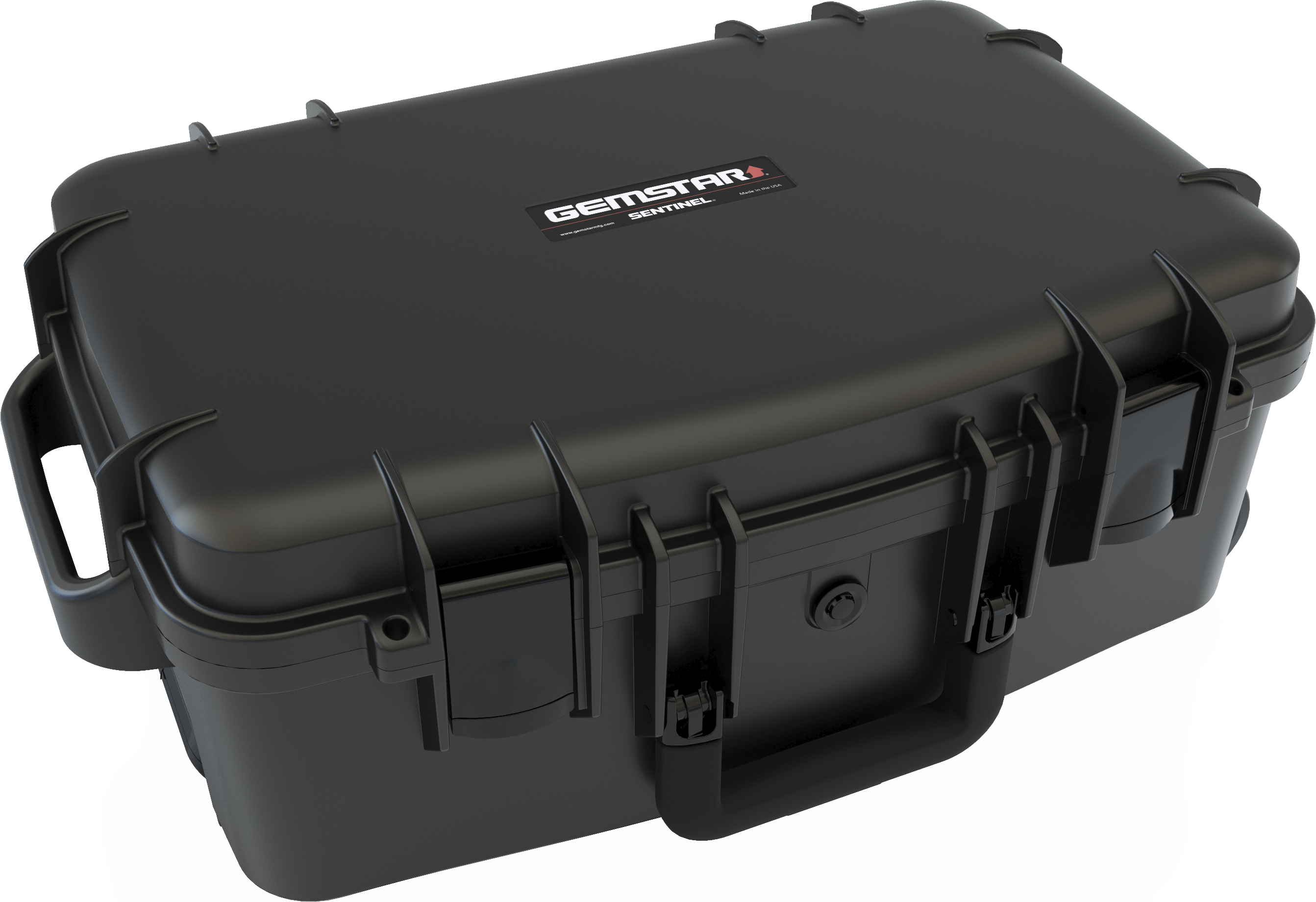

Sentinel® Sentinel 1220-7 19.7" x 12.3" x 7.3"
500 x 312 x 185mm
22.4" x 14.9" x 8.9"
569 x 378 x 226mm
2.0"
51mm
5.3"
135mm
11.4lbs
5.2kg
Spec Sheet

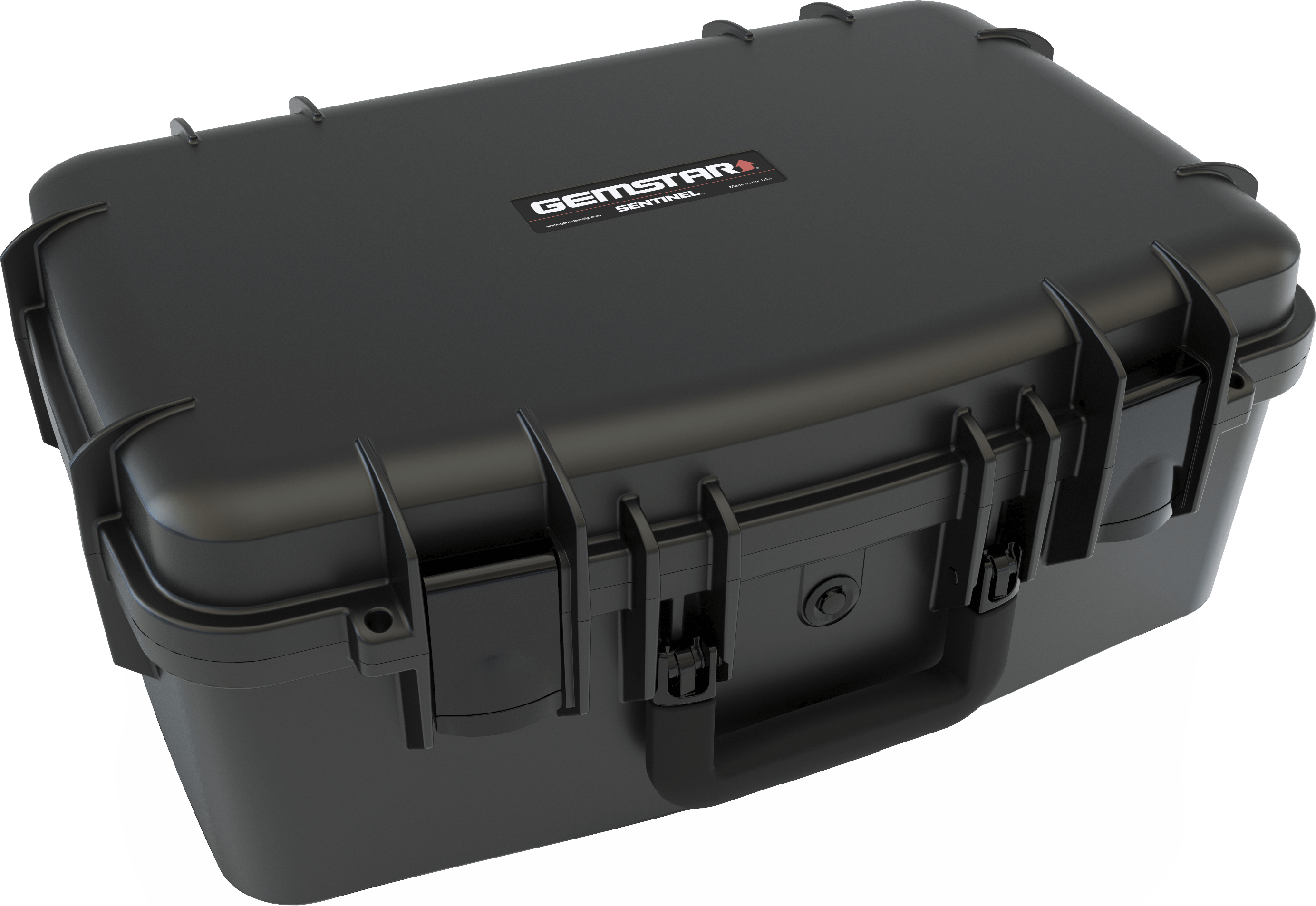

Sentinel® Sentinel 1220-8 19.7" x 12.3" x 8.1"
500 x 312 x 206mm
21.4" x 14.9" x 8.7"
544 x 378 x 221mm
2.0"
51mm
6.1"
155mm
7.5lbs
3.4kg
Spec Sheet

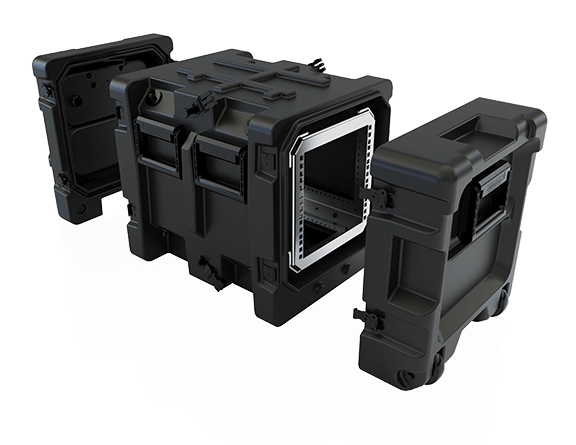

RoboRack™ SR1212-5U18 23.5" x 12.1" x 12.5"
597 x 307 x 318mm
27.0" x 15.4" x 17.2"
686 x 391 x 437mm
1.75"
44mm
3.75"
95mm
34.5lbs
15.6kg
Spec Sheet

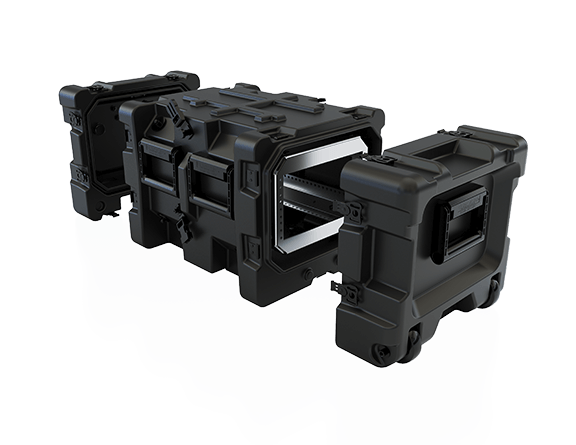

RoboRack™ SR0912-3U18 24.0" x 12.7" x 9.4"
610 x 323 x 239mm
27.4" x 15.4" x 14.2"
696 x 391 x 361mm
4.0"
102mm
5.3"
135mm
30.5lbs
13.8kg
Spec Sheet

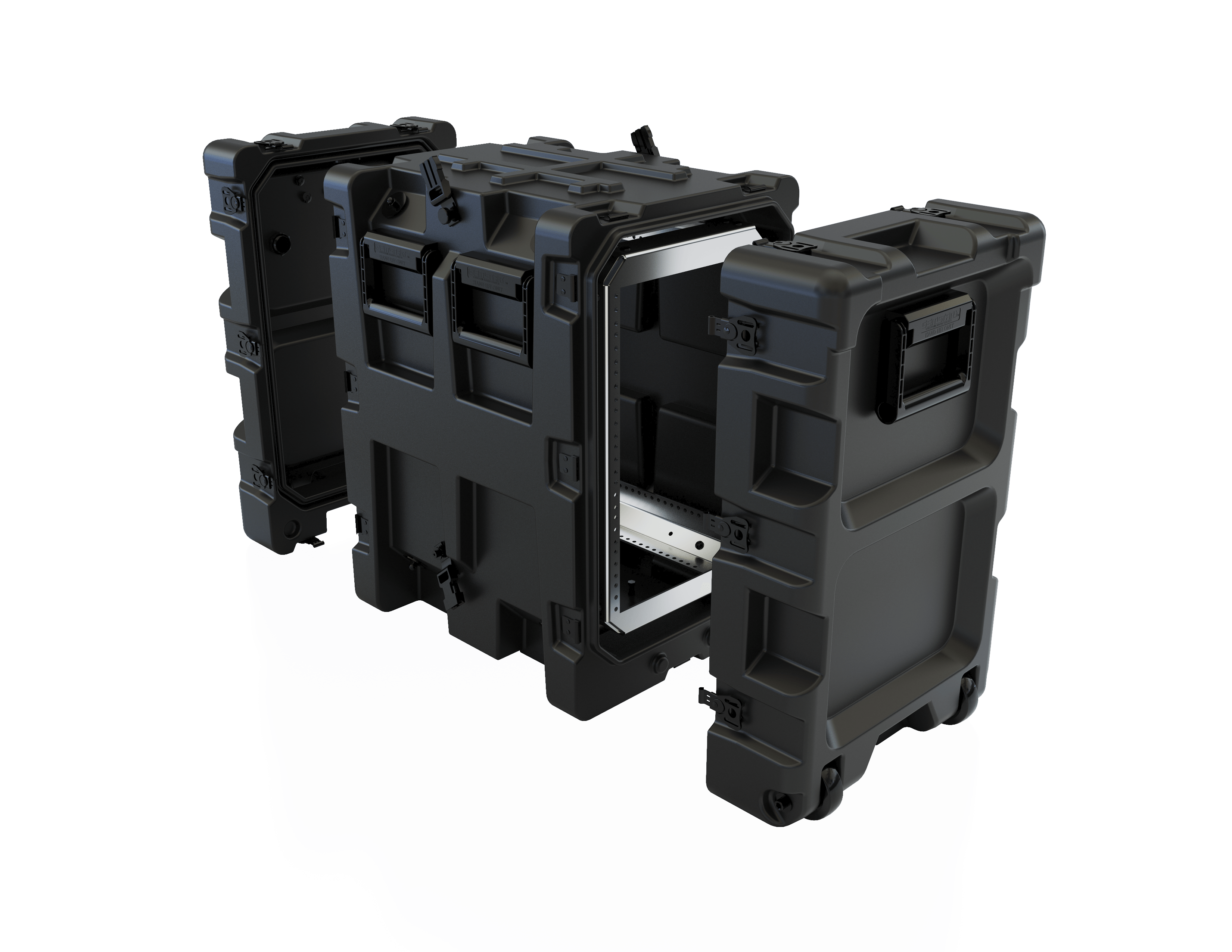

RoboRack™ SR2012-9U18 24.0" x 12.7" x 19.9"
610 x 323 x 505mm
27.4" x 15.4" x 24.8"
696 x 391 x 630mm
4.0"
102mm
5.4"
135mm
43.9lbs
19.9kg
Spec Sheet

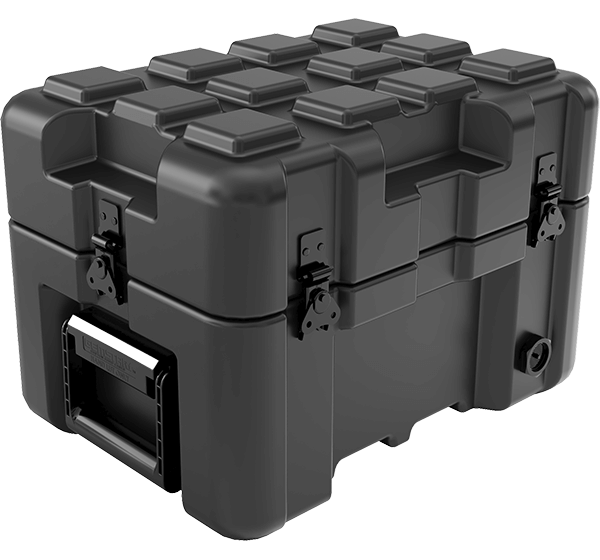

Stronghold® SH1309-0603 13.5" x 9.2" x 10.6"
342 x 233 x 268mm
16.6" x 12.3" x 11.9"
421 x 312 x 302mm
3.8"
96mm
6.8"
172mm
12.5lbs
5.7kg
Spec Sheet

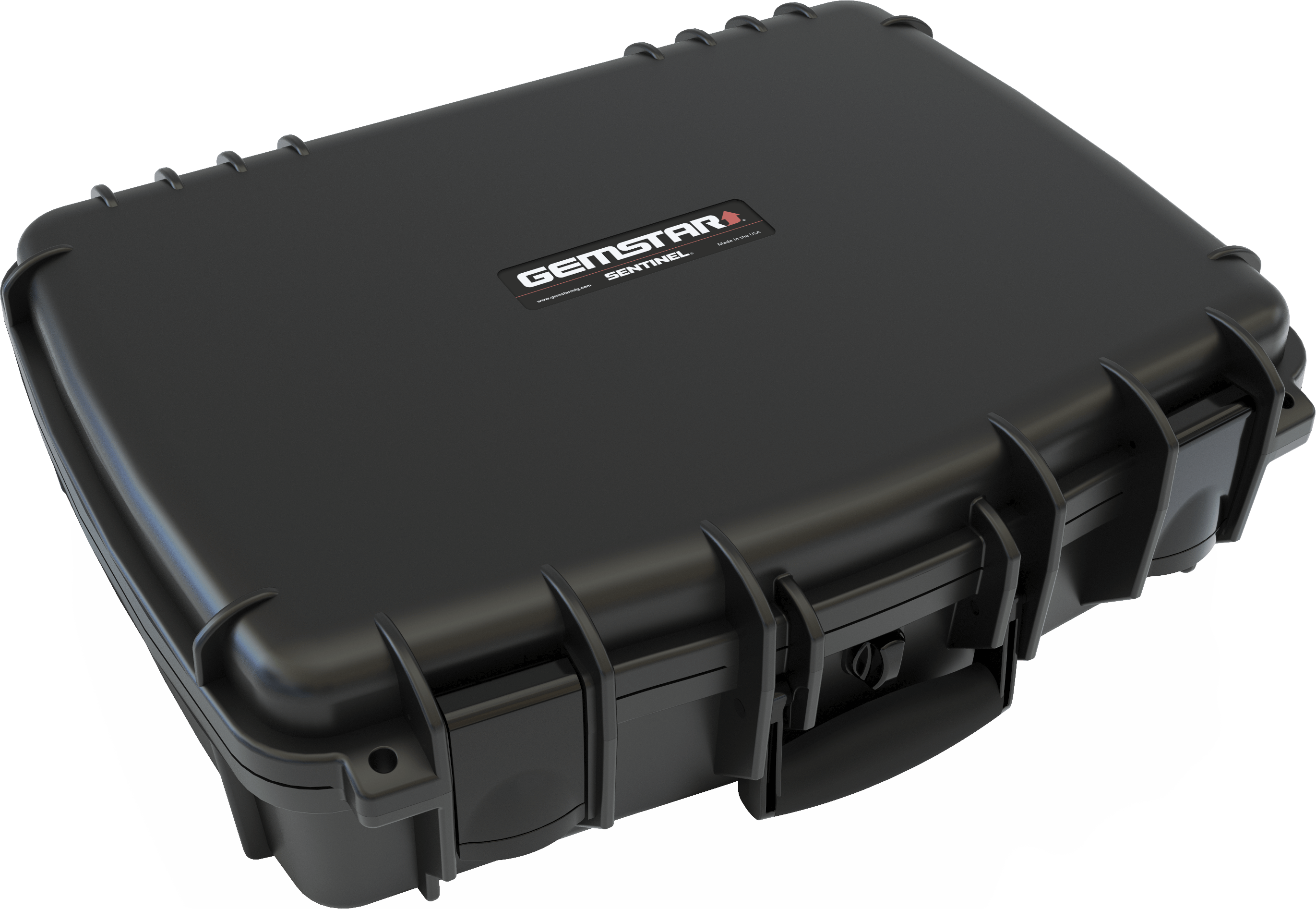

Sentinel® Sentinel 1318-5 18.0" x 13.0" x 5.0"
457 x 330 x 127mm
19.7" x 15.7" x 5.5"
500 x 399 x 140mm
1.5"
38mm
3.5"
89mm
6.6lbs
3.0kg
Spec Sheet

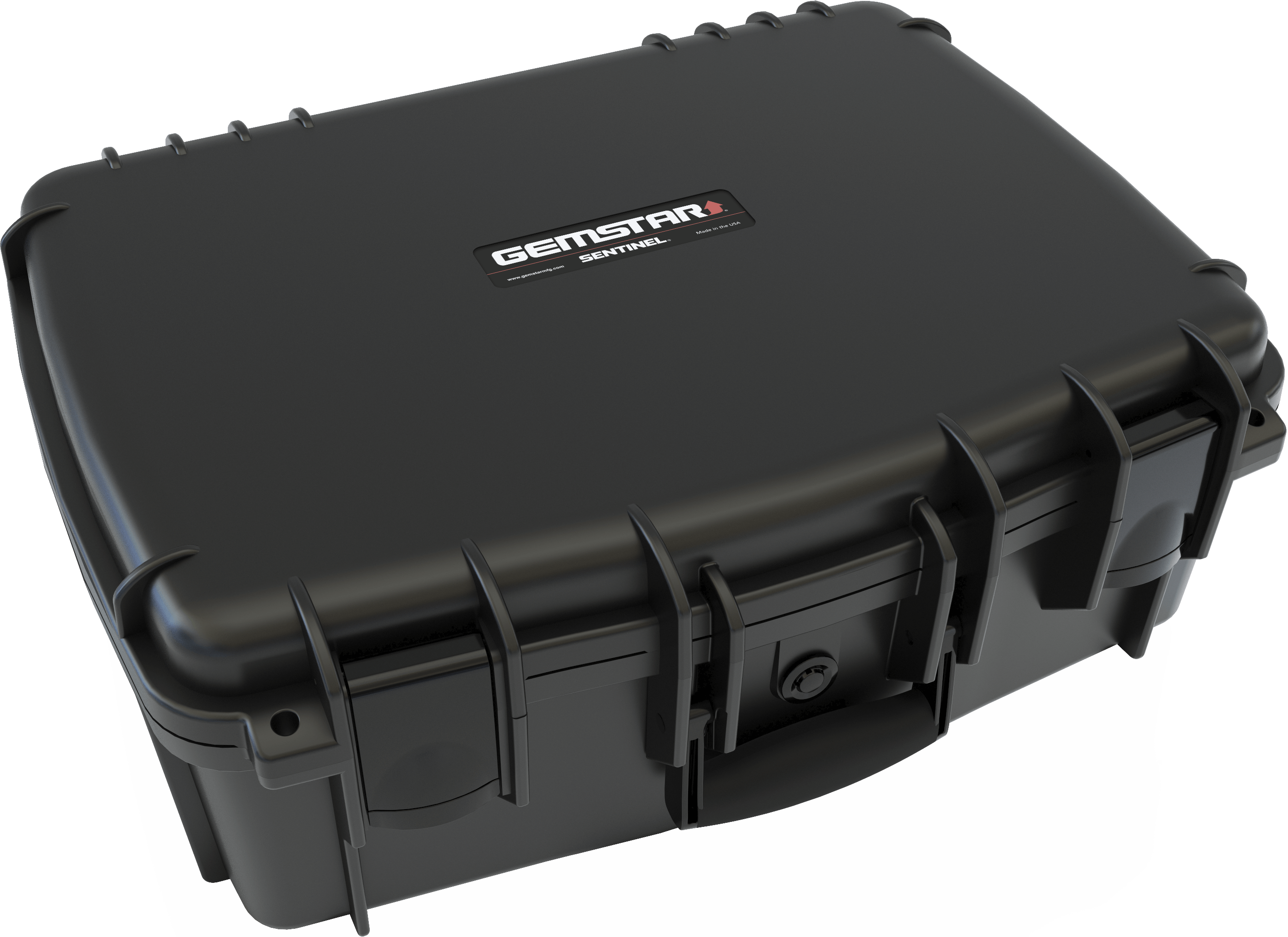

Sentinel® Sentinel 1318-6 18.0" x 13.0" x 6.7"
457 x 330 x 170mm
19.7" x 15.7" x 7.2"
500 x 399 x 183mm
1.5"
38mm
5.2"
132mm
6.8lbs
3.1kg
Spec Sheet

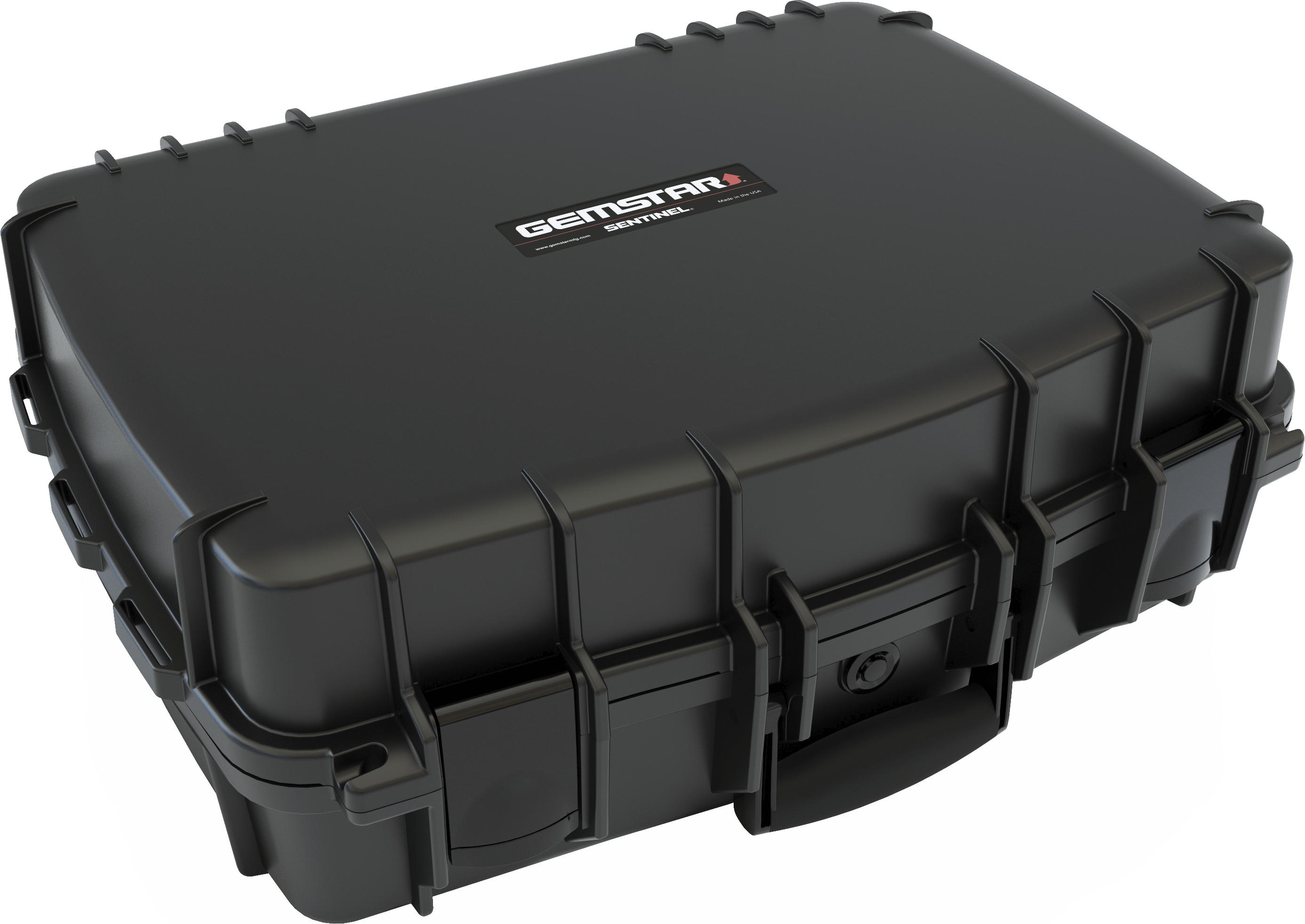

Sentinel® Sentinel 1318-7 18.0" x 13.0" x 6.5"
457 x 330 x 165mm
19.7" x 15.7" x 7.0"
500 x 399 x 178mm
3.0"
76mm
3.5"
89mm
7.2lbs
3.3kg
Spec Sheet

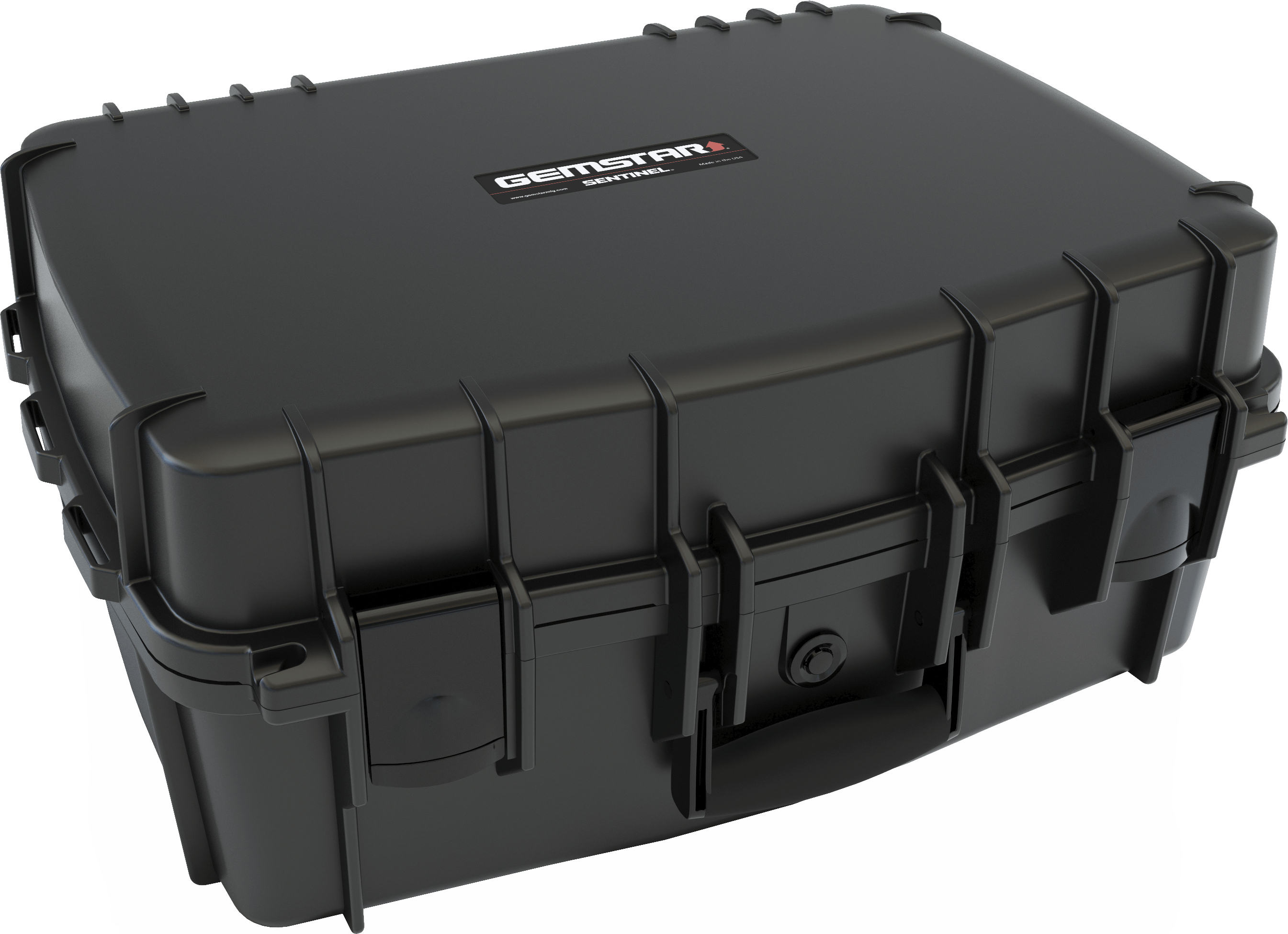

Sentinel® Sentinel 1318-8 18.0" x 13.0" x 8.2"
457 x 330 x 208mm
20.3" x 15.7" x 8.7"
516 x 399 x 221mm
3.0"
76mm
5.2"
132mm
7.7lbs
3.5kg
Spec Sheet

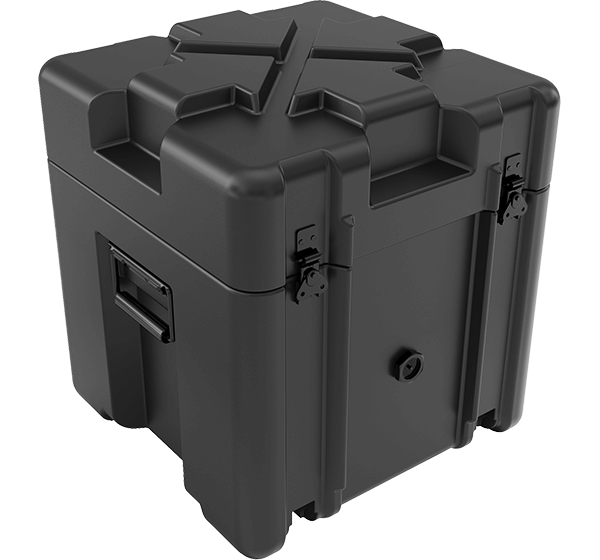

Stronghold® SH1414-1204 14.0" x 14.0" x 16.8"
355 x 355 x 426mm
17.3" x 17.0" x 19.0"
439 x 431 x 482mm
4.2"
106mm
12.6"
320mm
17.5lbs
7.9kg
Spec Sheet

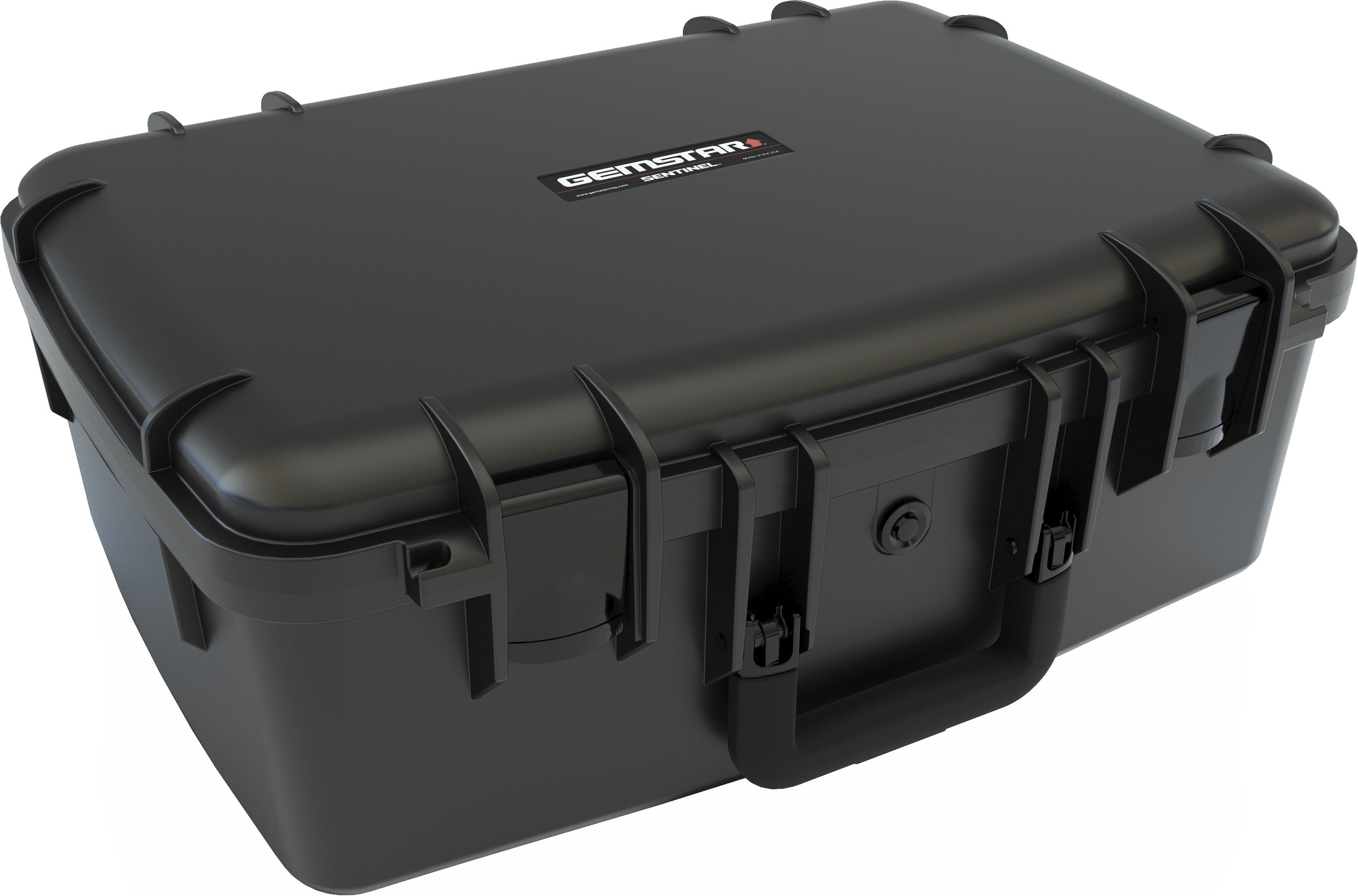

Sentinel® Sentinel 1420-8 20.7" x 14.2" x 8.0"
526 x 361 x 203mm
22.2" x 16.7" x 8.5"
564 x 424 x 216mm
1.5"
38mm
6.5"
165mm
9.1lbs
4.1kg
Spec Sheet

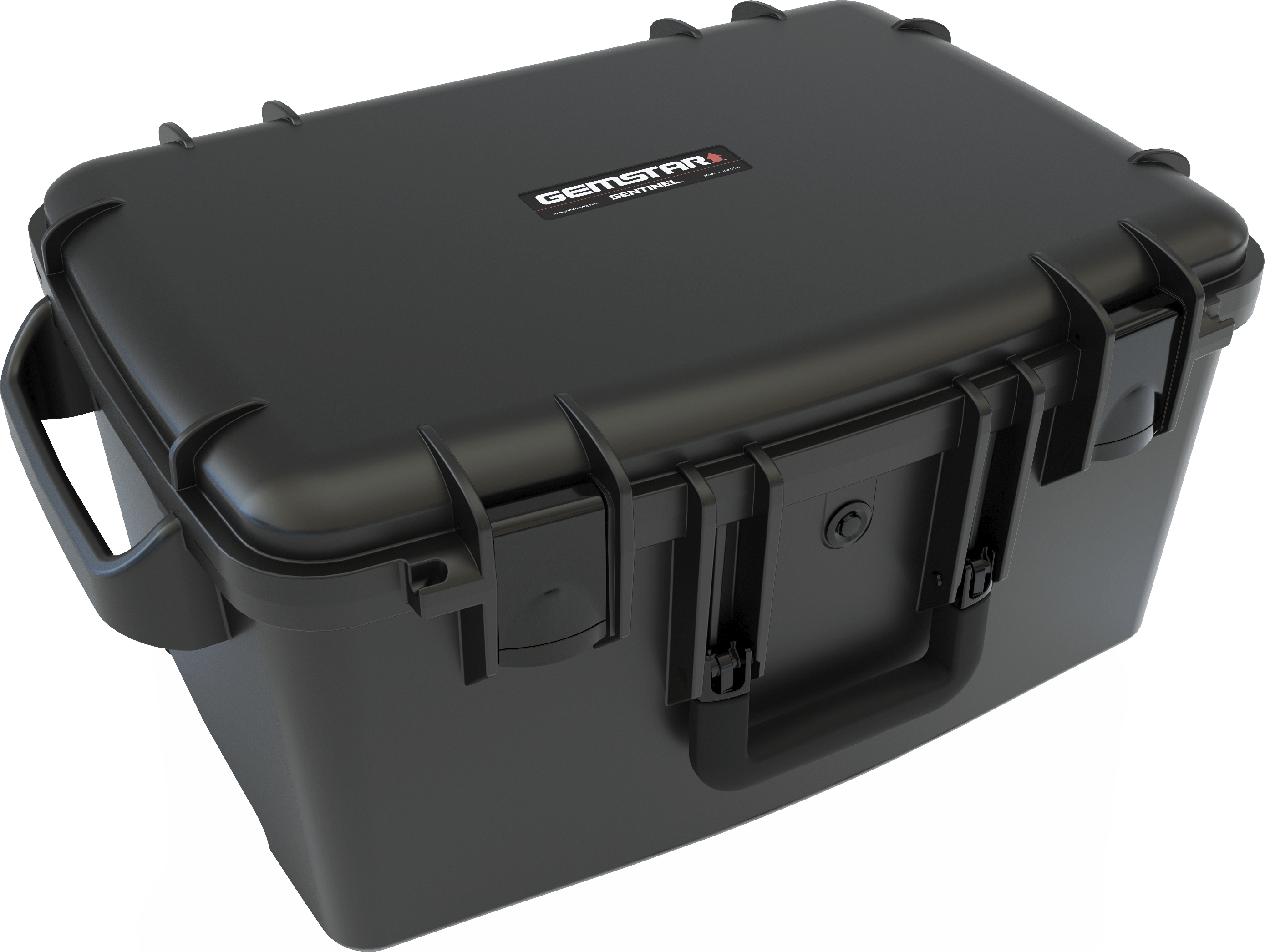

Sentinel® Sentinel 1420-10 20.7" x 14.2" x 10.1"
526 x 361 x 257mm
23.6" x 16.7" x 11.7"
599 x 424 x 297mm
1.5"
38mm
8.6"
218mm
12.1lbs
5.5kg
Spec Sheet

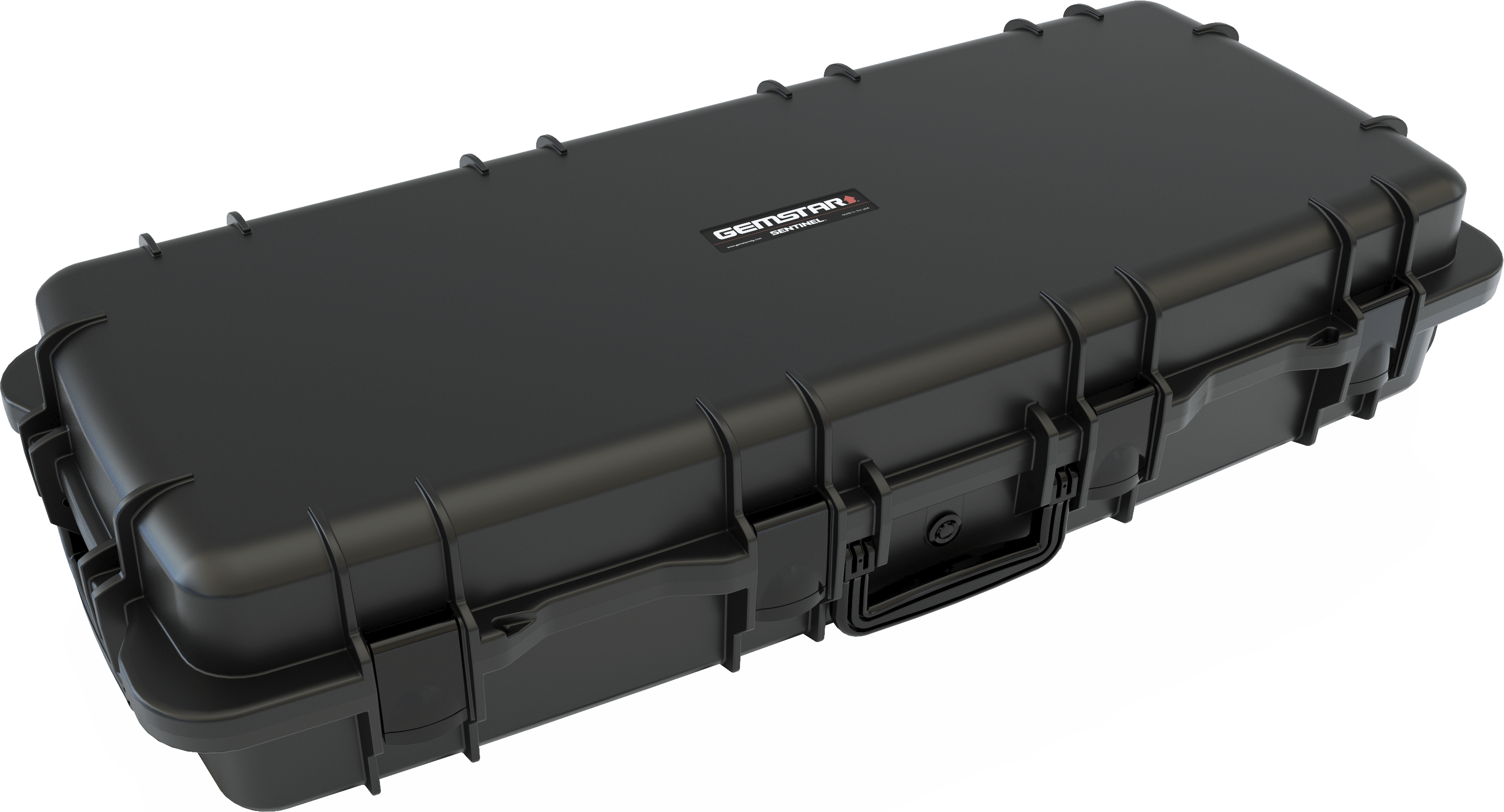

Sentinel® Sentinel 1536-7 36.4" x 14.7" x 7.0"
925 x 373 x 178mm
39.1" x 17.6" x 7.7"
993 x 447 x 196mm
3.0"
76mm
4.0"
102mm
15.3lbs
6.9kg
Spec Sheet

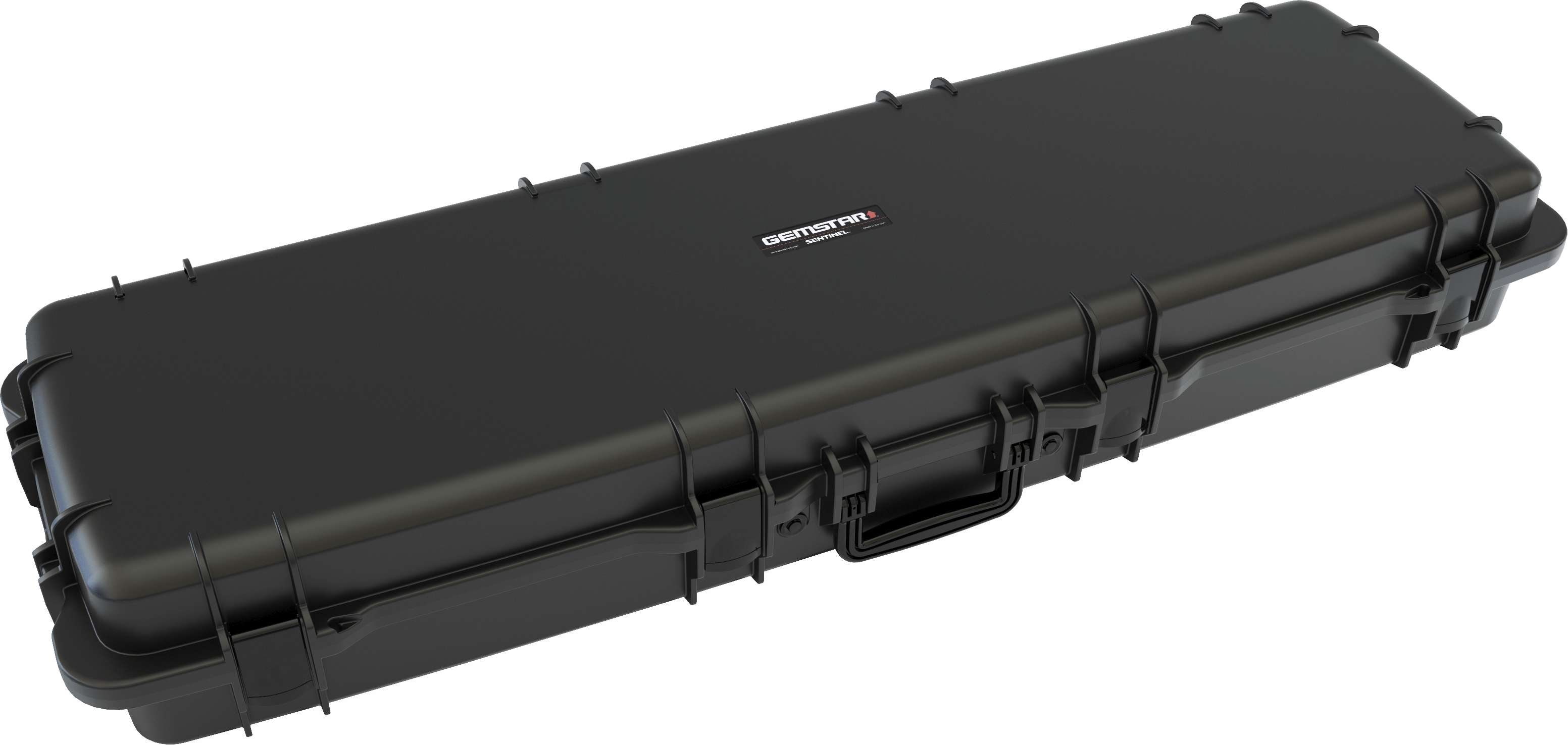

Sentinel® Sentinel 1551-7 51.1" x 14.7" x 7.0"
1298 x 373 x 178mm
54.2" x 17.5" x 7.7"
1377 x 445 x 196mm
3.0"
76mm
4.0"
102mm
20.2lbs
9.2kg
Spec Sheet

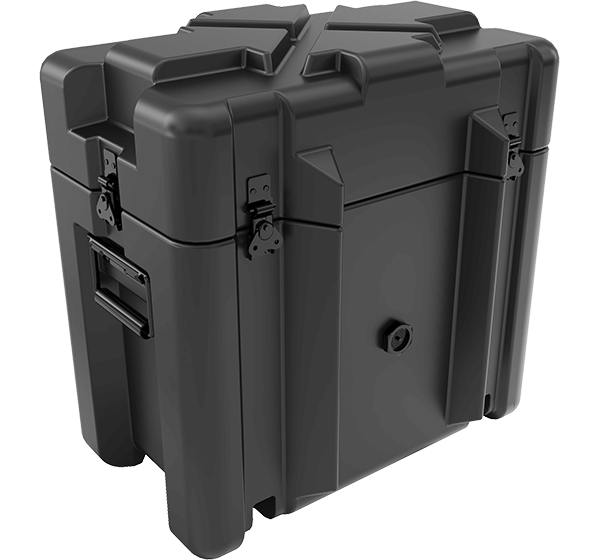

Stronghold® SH1609-1304 16.5" x 9.2" x 18.0"
419 x 233 x 456mm
19.4" x 13.8" x 20.0"
492 x 350 x 508mm
4.2"
106mm
13.8"
350mm
16.6lbs
7.5kg
Spec Sheet

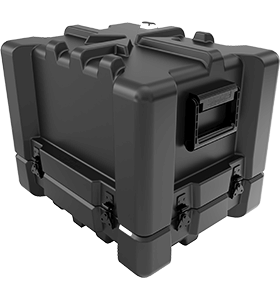

Stronghold® SH1612-0410 16.8" x 12.8" x 15.1"
426 x 325 x 382mm
20.0" x 16.0" x 17.0"
508 x 406 x 431mm
10.9"
276mm
4.2"
106mm
16.7lbs
7.6kg
Spec Sheet
Stronghold® SH1616-0411 16.0" x 16.0" x 15.3"
406 x 406 x 387mm
19.5" x 19.5" x 17.1"
495 x 495 x 434mm
11.0"
279mm
4.3"
108mm
18.3lbs
8.3kg
Spec Sheet
Stronghold® SH1616-1103 16.0" x 16.0" x 15.3"
406 x 406 x 387mm
19.5" x 19.5" x 17.1"
495 x 495 x 435mm
3.9"
98mm
11.4"
289mm
18.3lbs
8.3kg
Spec Sheet
Stronghold® SH1616-1111 16.0" x 16.0" x 22.4"
406 x 406 x 568mm
19.5" x 19.5" x 24.2"
495 x 495 x 614mm
11.0"
279mm
11.4"
289mm
22.3lbs
10.1kg
Spec Sheet
